BB30 Outboard BB C/H for 24mm Cranks (Shimano) w/Ceramic Bearings - BB30-OUT-5/6

€159.00
Tax included

Brand: Wheels MFG

Part Nr: BB30-OUT-5/6

Vérified weight: 122g

Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in BB30 (42mm ID BB shell) frames without the need for any adapters.

 FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!

Sorry, no items left.
Color

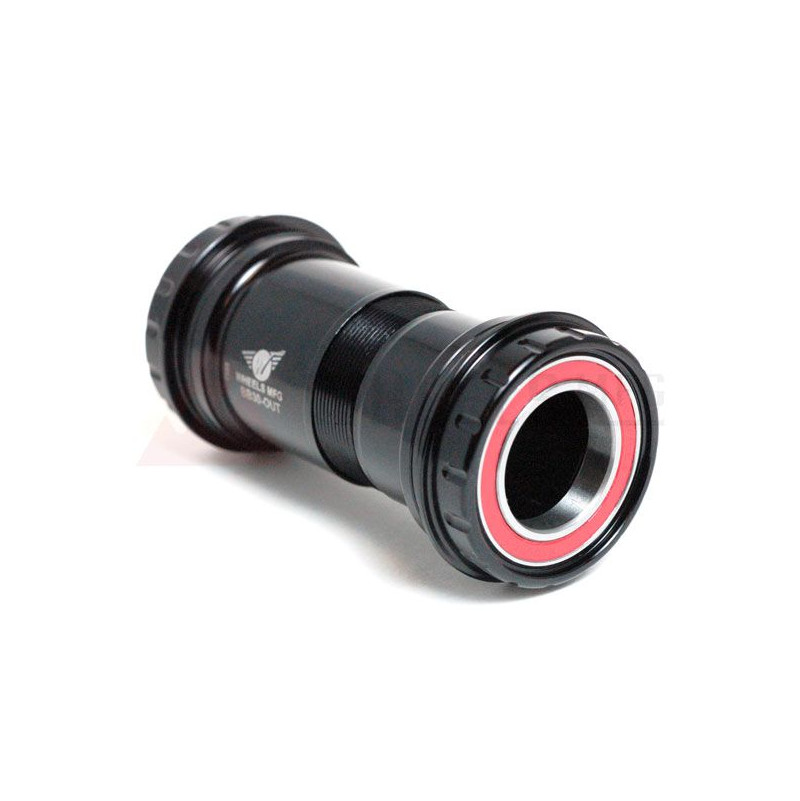

  • Black

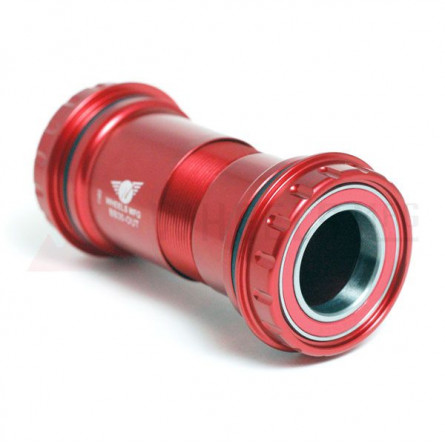

  • Red
Quantity
0
Out-of-Stock

Bearings: Enduro Ceramic Hybrid

Color: Black

Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB

Bottom Bracket Shell Width: 68mm - 73mm

Bottom Bracket Shell I.D.: 42mm

Over Bearing Width: 90.5mm in 68mm wide shell*

Crank Spindle Diameter: 24.00mm

Tool Pattern: 44mm, 16-notch

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP BB30-OUT-6

Data sheet

Bottom bracket standard
BB30 ◄Ø42mm - 68 to 73mm►
Bottom bracket standard
BB30 Outboard
Outside diameter (mm)
42
Width (mm)
68
Width (mm)
73
Axle diameter (mm)
24mm
Bottom bracket style
Thread Together

Specific References
