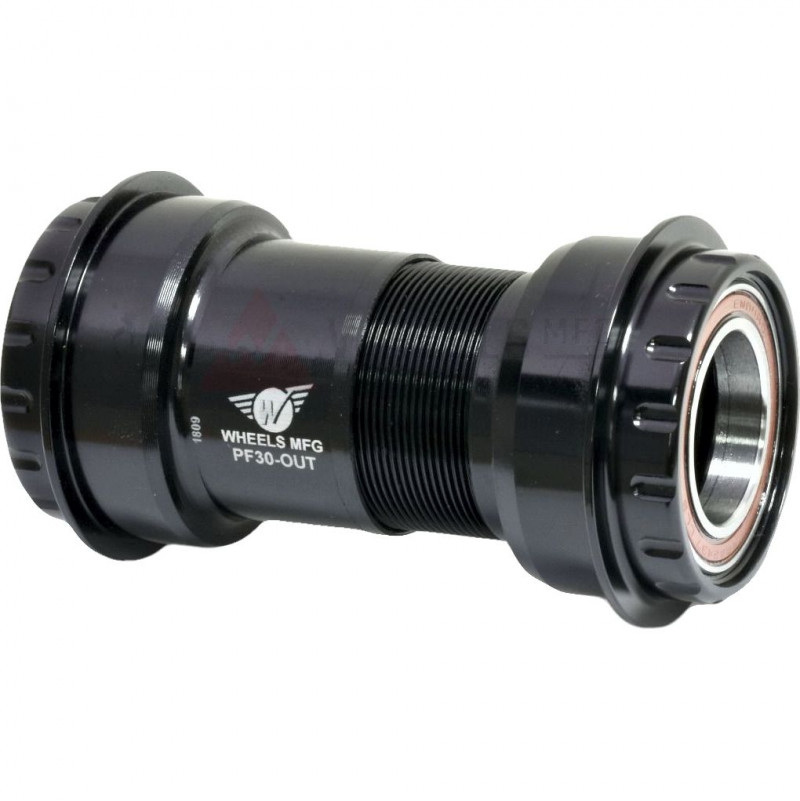

PF30 Outboard BB A/C for 24mm (Shimano) crank Angular Contact Bearings - PF30-OUT-3/4

€159.00
Tax included

Brand: Wheels MFG

Part Nr: PF30-OUT-3/4

Vérified weight: 158g

Thread together bottom bracket for frames using the PF30 bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in PF30 (46mm ID BB shell) frames without the need for any adapters.

1 item(s) left in stock ! Shipping within 24h (working days)
Color
  • Black
Quantity
0
Last items in stock

Bearings: Enduro Angular Contact

Color: Black

Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*

Bottom Bracket Shell Width: 61mm* - 73mm

Bottom Bracket Shell I.D.: 46mm

Over Bearing Width: 90.5mm in 68mm wide shell

Crank Spindle Diameter: 24.00mm

Tool Pattern: 44mm, 16-notch

Machined aluminum cups.

Dual silicone seal keeps the contamination out for longer life

Made in the USA

 Includes:

  • 2 - Silicone dust seals
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers

*Specialized Carbon OSBB frames with a 61mm shell width need additional cup spacers

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP PF30-OUT-3
1 Item

Data sheet

Bottom bracket standard
Specialized OSBB Cbn ◄Ø46mm - 61mm►
Bottom bracket standard
PF30 ◄Ø46mm - 68 to 73mm►
Bottom bracket standard
PF30 Outboard
Outside diameter (mm)
46
Width (mm)
68
Width (mm)
73
Width (mm)
61mm - OSBB
Axle diameter (mm)
24mm
Bottom bracket style
Thread Together

Specific References

PF30 Outboard BB A/C for...

€159.00
