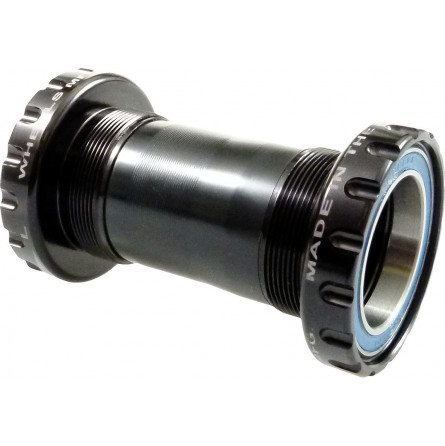

BSA Threaded to 30mm ABEC3 BB - BB-BSA30-BB

€109.00
Tax included

Brand: Wheels MFG

Part Nr: BB-BSA30-BB

Vérified weight: 102g

The solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

For use with 30mm diameter cranks with a spindle length of at least 104mm when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.

Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

4 item(s) left in stock ! Shipping within 24h (working days)
Quantity
1

Bearings: Enduro ABEC3

Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)

Bottom Bracket Shell Width (mm): 68mm - 73mm

Bottom Bracket Shell I.D.: 33.6-33.9 mm

Crank Spindle Diameter: 30mm

Crank Spindle Length: At least 104mm

Over Bearing Width: 91.5mm in a 68mm wide shell

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

Bottom Bracket Includes:

  • BB Cups with bearings
  • 2 - Silicone dust seals
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers
  • 1 - 2.5mm crank spindle spacer

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP BB-BSA30-BB
4 Items

Data sheet

Bottom bracket standard
BSA (Threaded)
Outside diameter (mm)
34,8mm (BSA 1,37"x24)
Width (mm)
68
Width (mm)
73
Axle diameter (mm)
30mm
Bottom bracket style
Threads into frame
