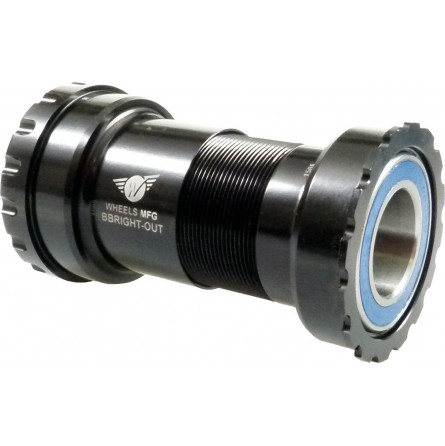

BBRIGHTOutboard Bottom Bracket for 24mm Cranks (Shimano) - BBRIGHT-OUT1

Brand: Wheels MFG

Part Nr: BBRIGHT-OUT-1

Verified weight: 146g

Outboard Design: The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance.This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Sorry, no items left.

​Adaptable BB to fit BBRIGHT specific frames.

Install 24mm (Shimano, FSA, Etc.) cranks into BBRIGHT frames without adapters.

Bearings: Enduro ABEC-3

Color: Black

Bottom Bracket/Frame Interface: BBRight™ Press Fit

Bottom Bracket Shell Width: 79mm

Bottom Bracket Shell I.D.: 46mm

Crank Spindle Diameter: 24.00mm

Tool Pattern: 48.5mm x 16 notch

Over Bearing Width: 91.5mm in 79mm wide shell*

Machined aluminum cups.

Dual silicone seal keeps the contamination out for longer life.

Made in the USA.

Includes:

BB Cups with bearings

2 - Silicone dust seals

2 - 0.5mm crank spindle spacers

2 - 1.0mm crank spindle spacers

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP BBRIGHT-OUT1

Data sheet

Bottom bracket standard
BBRight ◄Ø46mm - 79mm►
Outside diameter (mm)
46
Width (mm)
79
Axle diameter (mm)
24mm
Bottom bracket style
Thread Together
