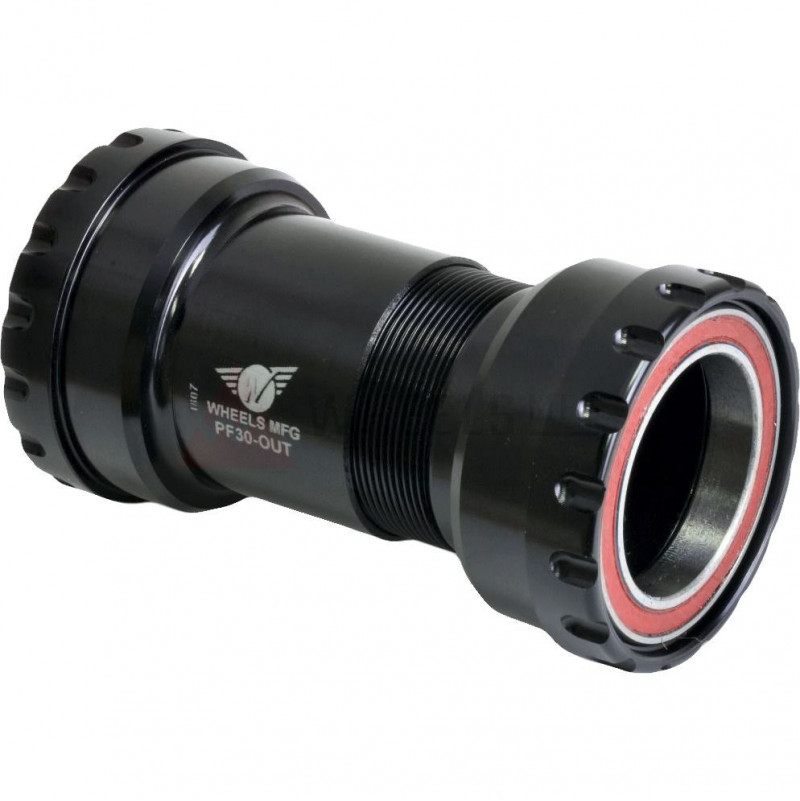

PF30 Outboard BB A/C for 30mm crank Angular Contact Bearings - PF30-OUT-30MMAC

€159.00
Tax included

Brand: Wheels MFG

Part Nr: PF30-OUT-30MMAC

Verified weight: 151g

PF30 bottom bracket with outboard bearings for use with 30mm spindle cranksets. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

3 item(s) left in stock ! Shipping within 24h (working days)
Quantity
0

​Bearings: Enduro Angular contact

Color: Black

Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*

Bottom Bracket Shell Width: 61mm* to 83mm

Bottom Bracket Shell I.D.: 46mm

Over Bearing Width: 89mm in 68mm wide shell

Crank Spindle Diameter: 30mm

Tool Pattern: 48.5mm x 16 notch

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

*Specialized Carbon OSBB frames with a 61mm shell width need additional cup spacers

Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP PF30-OUT-30MMAC
3 Items

Data sheet

Bottom bracket standard
PF30 ◄Ø46mm - 68 to 73mm►
Bottom bracket standard
PF30 Outboard
Outside diameter (mm)
46
Width (mm)
68
Width (mm)
73
Width (mm)
61mm - OSBB
Axle diameter (mm)
30mm
Bottom bracket style
Thread Together
