T47 BB 24mm (Shimano) Angular Contact Bearings - T47-BB-SHIM-AC

€165.00
Tax included

Brand: Wheels MFG

Part Nr: T47-BB-SHIM-AC

Verified weight: 119g

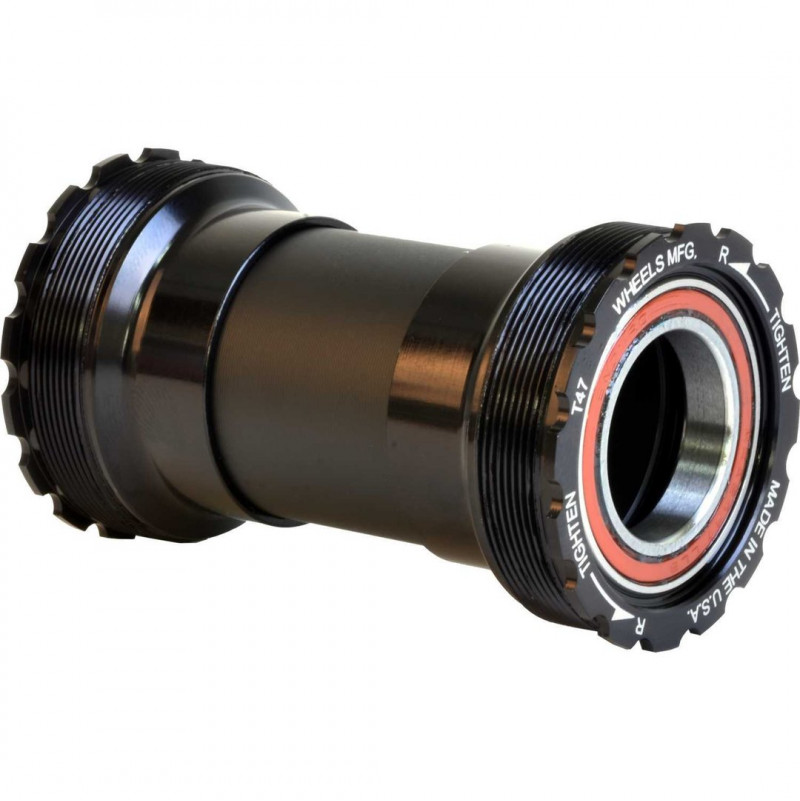

T47 threaded BB cups for T47 frames and 24.00mm spindle diameter cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

Sorry, no items left.
Quantity
0
Out-of-Stock

Bearings: Enduro Angular Contact

Color: Black

Bottom Bracket/Frame Interface: T47

Bottom Bracket Shell Width (mm): 68mm - 132mm

Bottom Bracket Shell I.D.: 47x1.0mm Threaded

Crank Spindle Diameter: 24.00mm

Over Bearing Width: 91.5mm in 86.5mm wide shell*

Tool Pattern: 48.5mm x 16-notch

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

​​>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP T47-BB-SHIM-AC

Data sheet

Bottom bracket standard
T47 (Threaded)
Outside diameter (mm)
T47 (Thread 47x1mm)
Width (mm)
68 - 132
Axle diameter (mm)
24mm
Bottom bracket style
Threads into frame
Category
Transmission
