T47 Outboard BB 22/24mm (Sram GXP) Angular Contact Bearings - T47-OUT-SRAM-AC

€165.00
Tax included

Brand: Wheels MFG

Part Nr: T47-OUT-SRAM-AC

Vérified weight: 162g

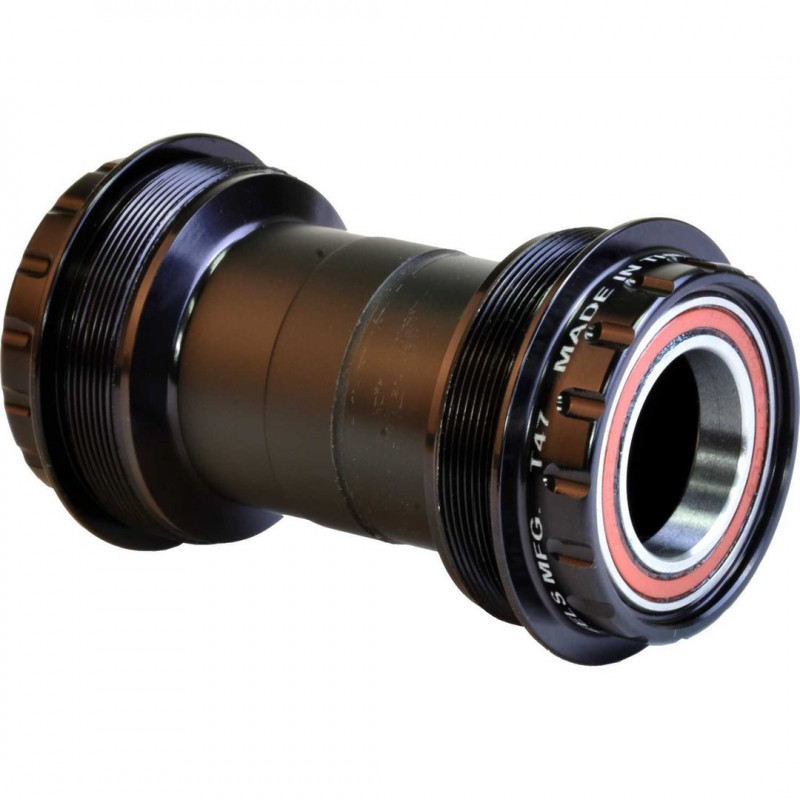

T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have outboard bearings, and are typically used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

3 item(s) left in stock ! Shipping within 24h (working days)
Quantity
0

Drive Side Bearing: Enduro Angular Contact

Non Drive Side Bearing: Enduro ABEC-3

Color: Black

Bottom Bracket/Frame Interface: T47

Bottom Bracket Shell Width (mm): 68mm - 100mm

Bottom Bracket Shell I.D.: 47x1.0mm Threaded

Crank Spindle Diameter: 22/24mm

Over Bearing Width: 91.2mm in 68mm wide shell

Tool Pattern: 44mm x 16-notch

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP T47-OUT-SRAM-AC
3 Items

Data sheet

Bottom bracket standard
T47 (Threaded)
Outside diameter (mm)
T47 (Thread 47x1mm)
Width (mm)
68 - 100mm
Axle diameter (mm)
22-24mm (Sram GXP)
Bottom bracket style
Threads into frame
Category
Transmission
