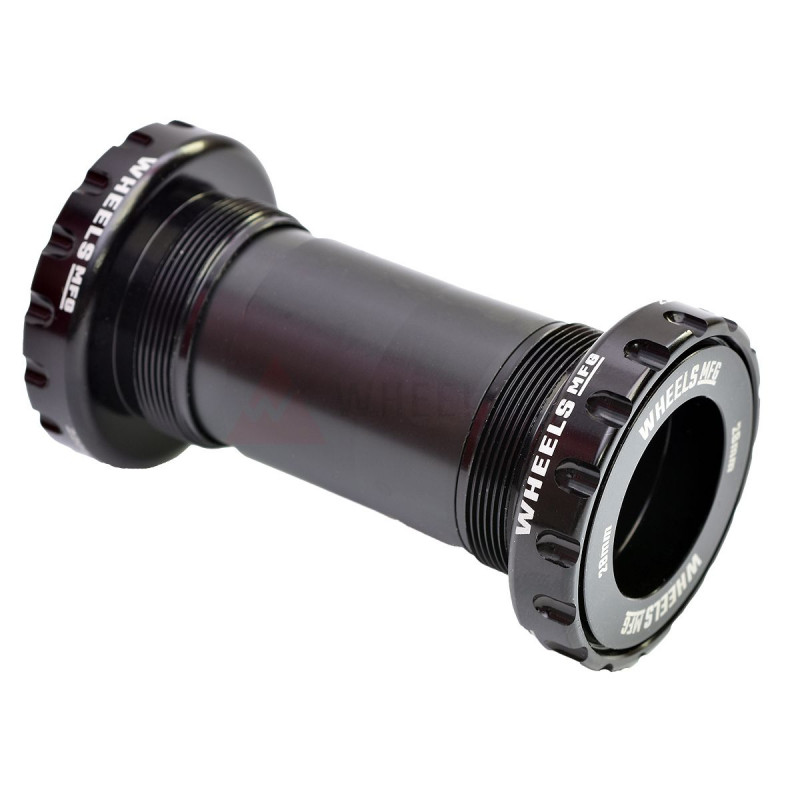

BSA Threaded to 28/30mm (Praxis) BB - BSABB-PRX

Brand: Wheels MFG

Part Nr: BSABB-PRX

Vérified weight: 102g

Run M30 28/30mm spindle Praxis - compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature ABEC-3 sealed bearings outboard of the BB shell

Fully serviceable

Sorry, no items left.

Bearings: Enduro ABEC-3

Color: Black

Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)

Bottom Bracket Shell Width (mm): 68mm, 73mm, 100m

Bottom Bracket Shell I.D.: 33.6-33.9 mm

Crank Spindle Diameter: 28/30mm

Tool Pattern: 48.5mm x 16-notch

Over Bearing Width: 91.5mm in a 68mm wide shell

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

Bottom Bracket Includes:

  • BB Cups with bearings
  • 2 - Silicone dust seals
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers
  • 1 - 2.5mm crank spindle spacer
  • 1 - 28mm insert

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP BSABB-PRX

Data sheet

Bottom bracket standard
BSA (Threaded)
Bottom bracket standard
Praxis Compatible
Outside diameter (mm)
34,8mm (BSA 1,37"x24)
Width (mm)
68
Width (mm)
73
Axle diameter (mm)
28-30mm (Praxis)
Bottom bracket style
Threads into frame

Specific References
