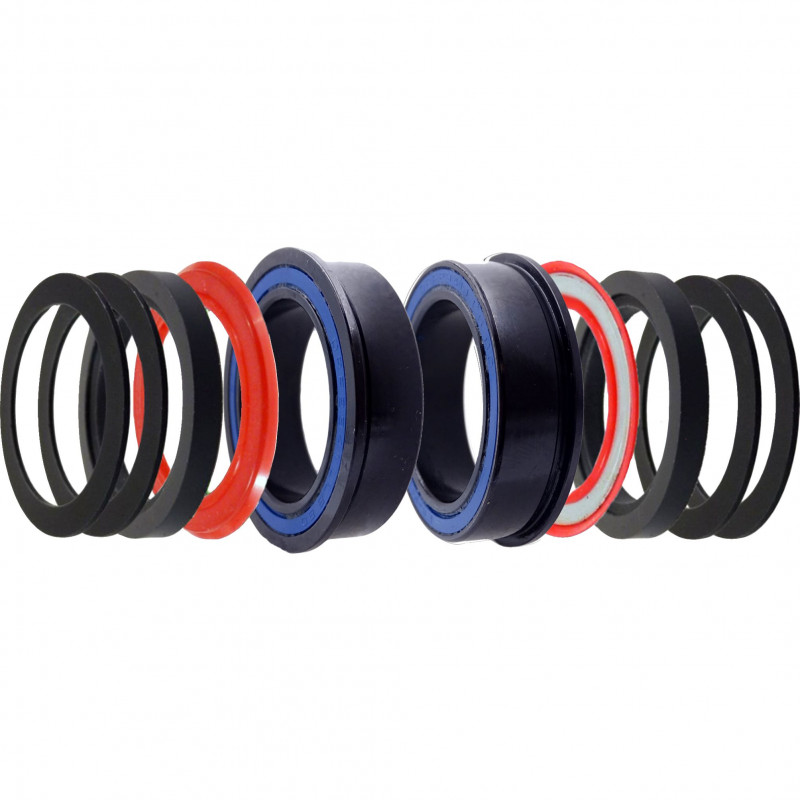

BB86 bottom bracket for 29mm cranckset
ABEC3 Bearings "Dual- Row " Blakc Oxyde Enduro Bearings
Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
Bottom Bracket Shell Width: 86.5mm - 132mm
Bottom Bracket Shell I.D.: 41mm
Flange OD: 42mm
Crank Spindle Diameter: 29mm (DUB)
Over Bearing Width: 92mm in 86.5mm wide shell*
Weight: 98g
Include seals and spacers
- 2x 29x1mm
- 1x 29x1.5mm
- 1x 29x2.5mm
- 2x Micro alu spacers (fits between the bearing and the red seal)
- 1x Wave Washer
* Over Bearing Width Dimensions include supplied silicone dust shields.
>>ASSEMBLY INSTRUCTIONS CLICK HERE<<
END BDP BK-7019 - EB9804
13 Items
Data sheet
- Bottom bracket standard
- BB86/92 ◄Ø41mm - 86 to 92mm►
- Bottom bracket standard
- SRAM DUB Compatible
- Outside diameter (mm)
- 41
- Width (mm)
- 86.5
- Width (mm)
- 92mm
- Width (mm)
- 86 - 92
- Axle diameter (mm)
- 29mm (Sram Dub)
- Bottom bracket style
- Direct-fit Bearings
- Category
- Transmission
