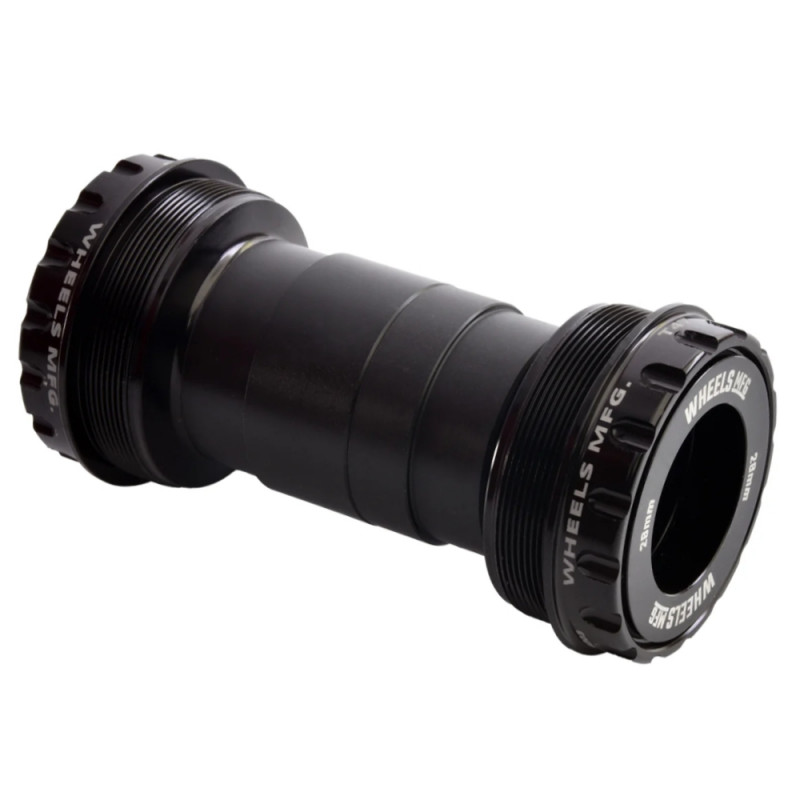

T47 Outboard ABEC-3 28/30MM (PRAXIS) - T47OUT-PRX

€165.00
Tax included

Brand: Wheels MFG

Part Nr: T47-OUT-29mm

Verified weight: 174g

T47Outboard threaded BB cups for T47 frames and 28/30mm diameter spindle praxis compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 60mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

1 item(s) left in stock ! Shipping within 24h (working days)
Quantity
1
Last items in stock

Bearings: Enduro ABEC-3

Color: Black

Bottom Bracket/Frame Interface: T47

Bottom Bracket Shell Width (mm): 68mm - 100mm

Bottom Bracket Shell I.D.: 47x1.0mm Threaded

Crank Spindle Diameter: 29mm

Over Bearing Width: 90.8mm in 68mm wide shell

Machined aluminum cups

Dual silicone seal keeps the contamination out for longer life

Made in the USA

Includes:

  • 2- Enduro Silicone dust seals
  • 1 - 2.5mm aluminum BB cup spacer
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers

>>ASSEMBLY INSTRUCTIONS CLICK HERE<<

WMF BDP T47OUT-PRX
1 Item

Data sheet

Bottom bracket standard
T47 (Threaded)
Bottom bracket standard
Praxis Compatible
Outside diameter (mm)
T47 (Thread 47x1mm)
Width (mm)
68 - 100mm
Axle diameter (mm)
28-30mm (Praxis)
Bottom bracket style
Threads into frame
Category
Transmission

Specific References

T47 Outboard ABEC-3 28/30MM...
